ENGINEERING & DESIGN ASSIST
no design is too complex
Whether for custom design requirements or production of submittal drawings, the engineering process is vital to achieving a quality product and installation. Acurlite’s attention to detail and innovative thinking sets us apart from the competition. Acurlite’s engineering and design staff have countless years in the skylight industry working on monumental, highly complex designs.

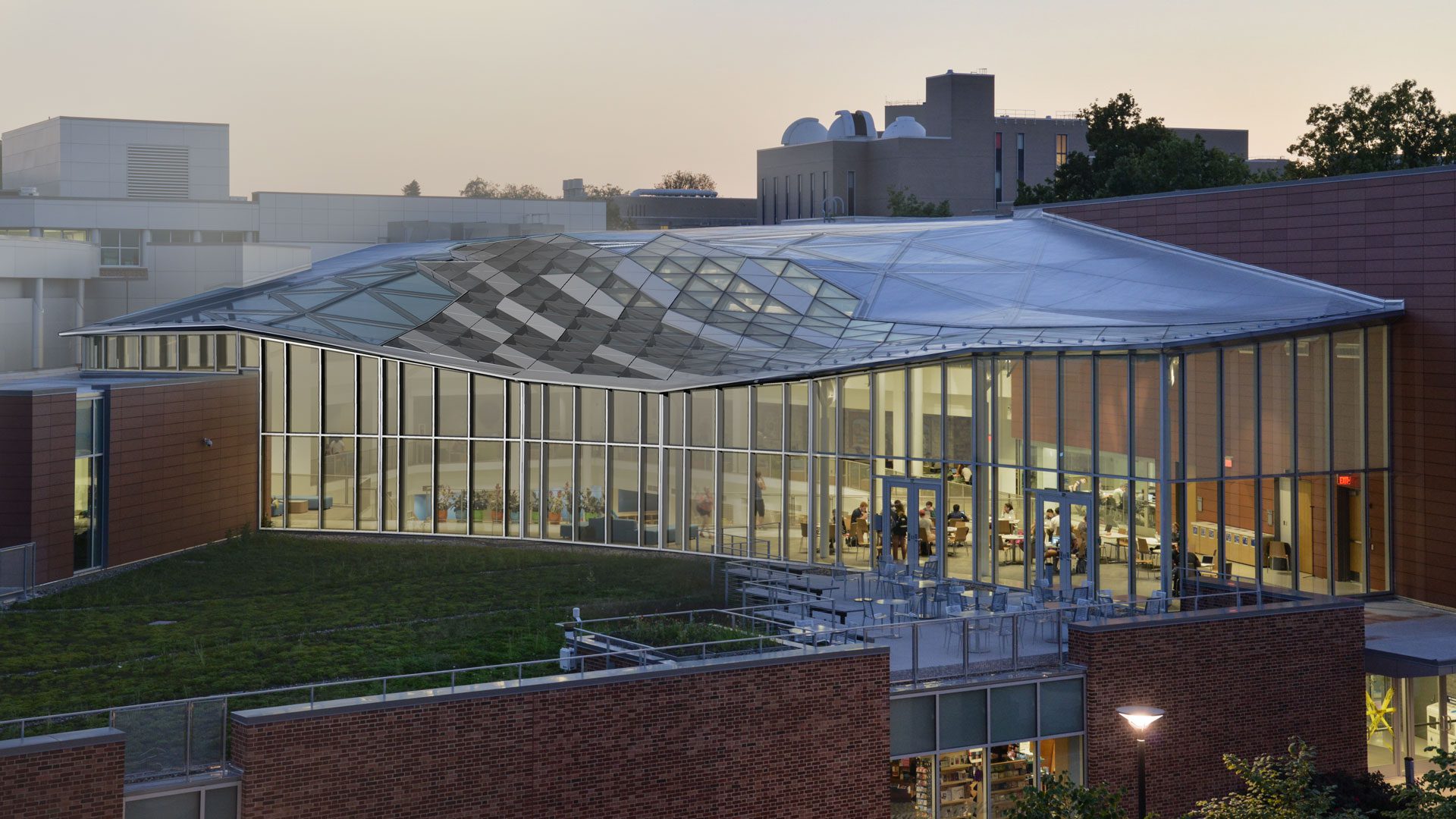

Pictured: Penn State University HUB, University Park, PA

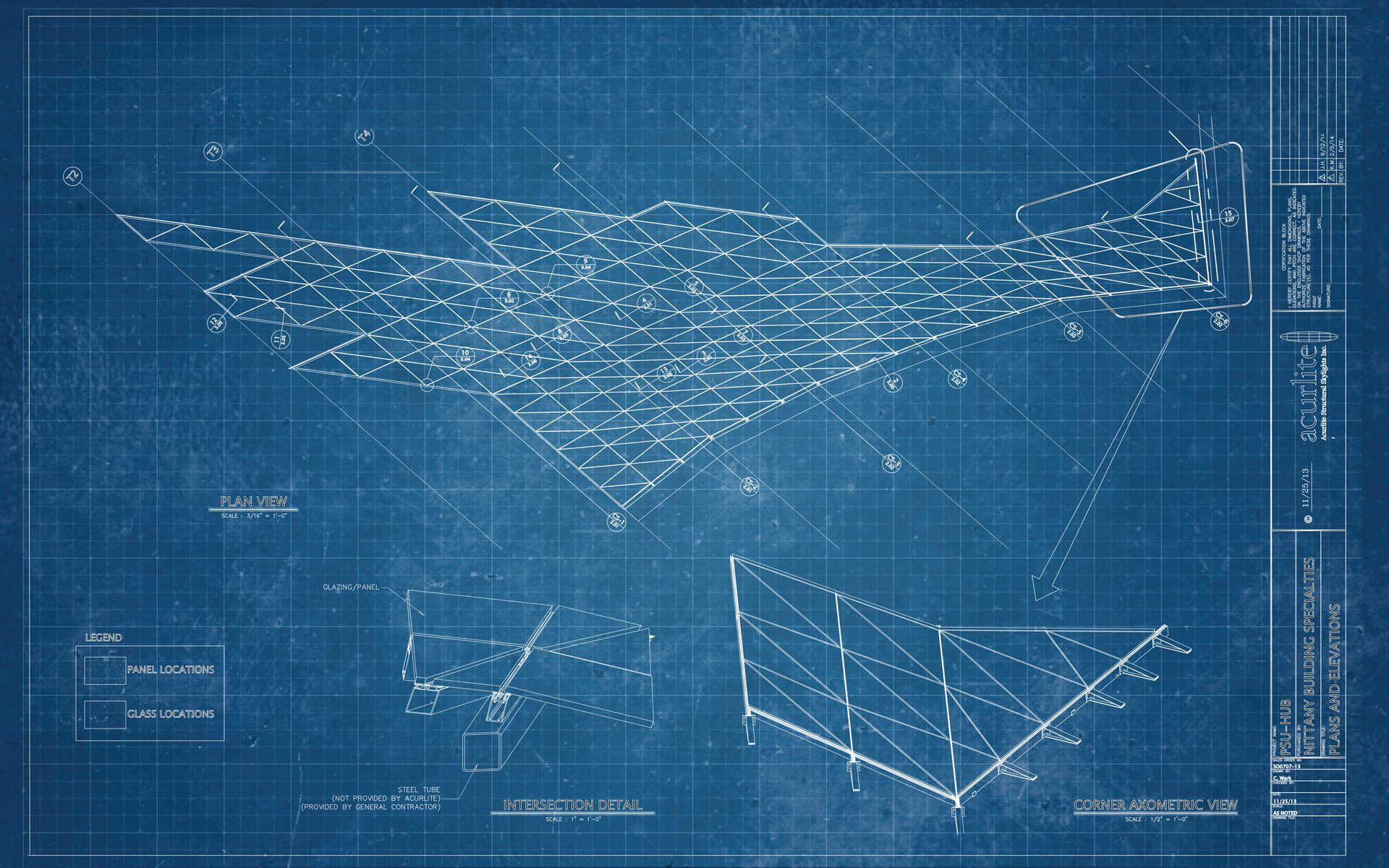

State-of-the-art 3D and BIM modeling brings concepts to life before they leave the drawing board, saving time and money. The Penn State HUB Project is visualized in the design phase.
HUB DETAIL
A detailed look at the custom, three-stage, mortise and tenon, internally guttered system, utilized in the complex skylight geometry featured in the Penn State HUB Project.
Click/Tap and Drag to rotate the Model. Use the double arrows to enable full screen.
VIEW THE SPACE IN 360°
Click the 360° image below
Click, touch, or pinch the image below to get a virtual view of the space!
Take the next step
Contact Acurlite to discuss your project.
